Understanding your Navigation Systems Compatibility

To help you find what Navigation system you have we have created the following listings guide. From here you should be able to recognise the correct system for your vehicle.

Should you also not be able to see either your navigation system listed here, or your car model or vehicle year is it likely that you already have the most updated map installed. If this is so please contact us and we can keep you informed as soon as an update for your model is available.

Nissan Premium 2nd generation

Touch Screen (SMEG+/SMEG+IV1)

The following elements identify this system:

- Similar front panel to WIP Nav, without the SD-Card logo nor the SD-Card slot
- The map is loaded in an internal memory (no removable SD-Card)

Select system

Touch Screen 7

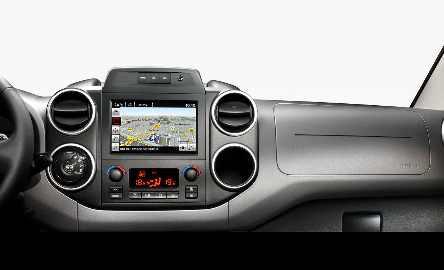

Touch Screen 7" with MirrorScreen (SMEG+IV2)

The following elements identify this system:

- Similar front panel to Touchscreen 7”.
- The map is loaded using a USB.

HOW DO I CHECK MY MAP VERSION?

- Touch button „Navigation“
- Touch this icon:
- Navigation Menu: configure map
- Maps tab: choose your country
- Your map version will be displayed.

For vehicles produced from 2015, in order to identify the audio/navigation system software version, follow procedure below:
- Press and hold (press maintained for 5 seconds) the "Configuration" button under the touch screen; Select : System version; View the software version displayed:
- if the software version is lower than 6.x (3.x ; 4.x; 5.x): select the system Touchscreen 7''
- if the software version is 6.x: select the system Touchscreen 7'' with MirrorScreen

Select system

Nissan Connect X7 System

WIP Nav + / Connect Nav + (RT6)

The following elements identify this system:

- There is a control lever on the central column between the armrest and gear change lever.
- There is no alphanumerical keypad on the dashboard
- The map information is copied to internal memory

Select system

Nissan Connect 3rd generation

WIP Nav / Connect Nav (RNEG)

The following elements identify this system:

- It is the only system where loading the map information takes place via an SD card
- It does not feature a numerical keypad

Select system

Nissan Connect X6 System

WIP Com 3D / Connect Com 3D (NG4)

The following elements identify this system:

- It is the only system with a 3D display and DVD reader (DVD logo under the CD slot)
- The numerical keypad is located on the right
- A joystick is mounted in the centre of the dashboard

Select system

WIP Com / Connect Com (RT3)

WIP Com / Connect Com (RT3)

The following elements identify this system:

- There are 2 knurled rotary buttons on the dashboard (on the right and on the left)
- There is an alphanumeric keypad
- There is no internal memory, the map CD must be left in the reader
- The symbols for the main menu are displayed on a grid layout

Select system

Nissan Connect 2nd generation

WIP Com / Connect Com (RT4/5)

The following elements identify this system:

- There is a single knurled rotary button in the centre of the dashboard (407) OR 2 knurled rotary buttons on the right and on the left (other vehicles)
- There is an alphanumeric keypad
- There is an internal memory: the map information is copied to the device's hard disk

Select system

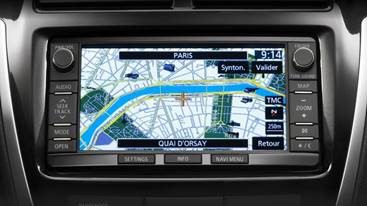

Peugeot Rochford 4008 SD

Rockford SD

Move a finger over the screen to operate the system, using the buttons provided:

- Map - used to display the current position of your vehicle on the map
- Destination - used to set navigation options and select the destination
- Navi Menu – used for adjustments to the navigation system

Select system
Model 2001200220032004200520062007200820092010201120122013201420152016System
1007 Tick Tick Tick Tick RT3
Tick Tick Tick Tick WIP Com / Connect Com (RT4/RT5)
206 Tick Tick Tick Tick RT3

207
Tick Tick Tick RT3
Tick Tick Tick WIP Com / Connect Com (RT4/RT5)
Tick Tick Tick Tick Tick Tick WIP Nav / Connect Nav

208
Tick Tick Tick Tick Touchscreen
Tick Tick Tick Touchscreen 7"
Tick Tick Touchscreen 7" with MirrorScreen

2008
Tick Tick Touchscreen
Tick Tick Tick Touchscreen 7"
Tick Touchscreen 7" with MirrorScreen
307 Tick Tick Tick Tick Tick Tick Tick RT3
Tick Tick WIP Com / Connect Com (RT4/RT5)

308
Tick Tick Tick Tick Tick Tick WIP Com / Connect Com (RT4/RT5)
Tick Tick Tick Tick Tick Tick WIP Nav / Connect Nav
Tick Tick Tick Tick Tick WIP Com 3D / Connect Com 3D
Tick Tick WIP Nav+ / Connect Nav +

New 308
Tick Tick Touchscreen 7"
Tick WIP Com 3D / Connect Com 3D
Tick Tick Tick WIP Nav+ / Connect Nav +
Tick Tick Tick Tick Touchscreen 7"

3008
Tick Tick Tick Tick Tick WIP Nav / Connect Nav
Tick Tick Tick Tick Tick Tick Tick WIP Com 3D / Connect Com 3D
Tick Tick Tick Tick Tick WIP Nav + / Connect Nav +

407
Tick Tick Tick Tick RT3
Tick Tick Tick Tick Tick Tick WIP Com / Connect Com (RT4/RT5)
Tick Tick Tick Tick Tick WIP Nav / Connect Nav
4007 Tick Tick Tick Tick Tick Tick Tick Navigation Melco HDD
4008 Tick Tick Tick Navigation Melco HDD
508 Tick Tick Tick Tick Tick WIP Nav+ / Connect Nav +
Tick Tick Tick Touchscreen 7"

5008
Tick Tick Tick Tick Tick WIP Nav / Connect Nav
Tick Tick Tick Tick Tick Tick Tick WIP Com 3D / Connect Com 3D
Tick Tick Tick Tick Tick WIP Nav + / Connect Nav +
607 Tick Tick Tick RT3
Tick Tick Tick Tick Tick WIP Com / Connect Com (RT4/RT5)

807
Tick Tick Tick Tick Tick Tick Tick RT3
Tick Tick Tick Tick Tick Tick Tick Tick WIP Com / Connect Com (RT4/RT5)
Tick Tick Tick Tick Tick Tick Tick WIP Nav / Connect Nav
Tick Tick Tick WIP Nav + / Connect Nav +

RCZ
Tick Tick Tick Tick Tick WIP Com 3D / Connect Com 3D
Tick Tick Tick WIP Nav / Connect Nav
Tick Tick Tick Tick Tick WIP Nav + / Connect Nav +
Partner Tick Tick Tick Tick Tick WIP Nav / Connect Nav
Tick Tick Tick Tick WIP Nav + / Connect Nav +
Tick Tick Touchscreen 7" with MirrorScreen
Expert Tick Tick Tick Tick Tick Tick Tick WIP Com / Connect Com (RT4/RT5)
Tick Tick Tick Tick Tick Tick WIP Nav / Connect Nav
Tick Tick Tick Tick Tick WIP Nav + / Connect Nav +
Tick Tick Tick RT3

Model Year System
1007 2004 - 2005 RT3
2006 - 2009 WIP Com / Connect Com (RT4/5)
206 2003 - 2006 RT3
207 2005 - 2007 RT3
2007 - 2009 WIP Com / Connect Com (RT4/5)
2008 - 2013 WIP Nav / Connect Nav
208 2011 - 2013 Touchscreen 208
2014 - 2016 Touchscreen 7"
2015 - 2016 Touchscreen 7" with MirrorScreen
2008 2013 - 2014 Touchscreen 208
2014 - 2016 Touchscreen 7"
2016 Touchscreen 7" with MirrorScreen
307 2001 - 2007 RT3
2007 - 2008 WIP Com / Connect Com (RT4/5)
308 2006 - 2011 WIP Com / Connect Com (RT4/5)
2007 - 2012 WIP Nav / Connect Nav
2008 - 2013 WIP Com 3D / Connect Com 3D
2011 - 2013 WIP Nav+ / Connect Nav+
New 308 2013 WIP Com 3D / Connect Com 3D
2013 - 2015 WIP Nav+ / Connect Nav+
2013 - 2015 Touchscreen 7"
3008 2008 - 2012 WIP Nav / Connect Nav
2008 - 2014 WIP Com 3D / Connect Com 3D
2012 - 2016 WIP Nav+ / Connect Nav+
407 2003 - 2006 RT3
2006 - 2011 WIP Com / Connect Com (RT4/5)
2007 - 2011 WIP Nav / Connect Nav
4007 2007 - 2013 Navigation Melco HDD
4008 2011 - 2013 Navigation Melco HDD
508 2010 - 2014 WIP Nav+ / Connect Nav+
2014 - 2016 Touchscreen 7"
5008 2008 - 2012 WIP Nav / Connect Nav
2008 - 2014 WIP Com 3D / Connect Com 3D
2012 - 2016 WIP Nav+ / Connect Nav+
607 2005 - 2007 RT3
2007 - 2011 WIP Com / Connect Com (RT4/5)
807 2001 - 2007 RT3
2006 - 2013 WIP Com / Connect Com (RT4/5)
2007 - 2013 WIP Nav / Connect Nav
2012 - 2014 WIP Nav+ / Connect Nav+
RCZ 2010 - 2014 WIP Com 3D / Connect Com 3D
2010 - 2012 WIP Nav / Connect Nav
2012 - 2016 WIP Nav+ / Connect Nav+
Partner 2008 - 2012 WIP Nav / Connect Nav
2012 - 2015 WIP Nav+ / Connect Nav+
2015 - 2016 Touchscreen 7" with MirrorScreen
Expert 2007 - 2013 RT3
2006 - 2012 WIP Com / Connect Com (RT4/5)
2007 - 2012 WIP Nav / Connect Nav
2012 - 2016 WIP Nav+ / Connect Nav+


For any other questions please contact us
